Paint Perfect Booths

Down Draft Booth with Side Exhaust

The SK Bowling Company has been building Paint Spray Booths since 1983.

We are proud to say that our product is one of the very few paint booths "MADE IN THE USA" that carries the ETL Listing Label. We are a world class, regional manufacturer of spray booths and custom ventilation systems. Our Titan Air Make Up Systems and LDPI Lighting Fixtures are the finest components available and also USA Manufactured. All of our replacement parts are available locally to insure minimal interruption in your operation.

Our Paint Booths and Mixing Rooms are ETL Listed. This means that our products are fabricated, constructed, and installed to meet or exceed all Federal, State, and Local Building Codes and NFPA 33 requirements. This has been verified by Intertek Testing Services, an accepted and approved 3rd party testing service.



SK Bowling Down Draft Spray Booths
Click on photos for full-size view:

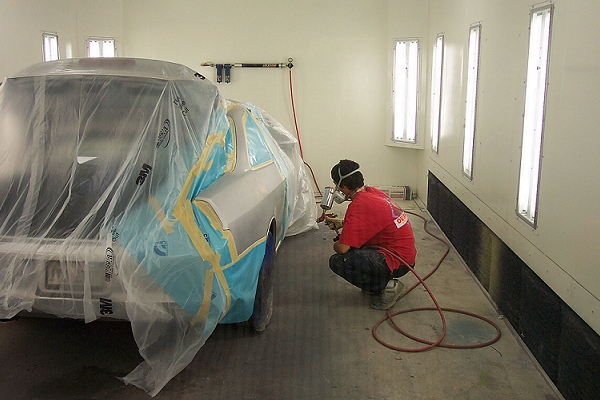

SK Bowling Down Draft Spray Booth



SK Bowling Down Draft Spray Booth

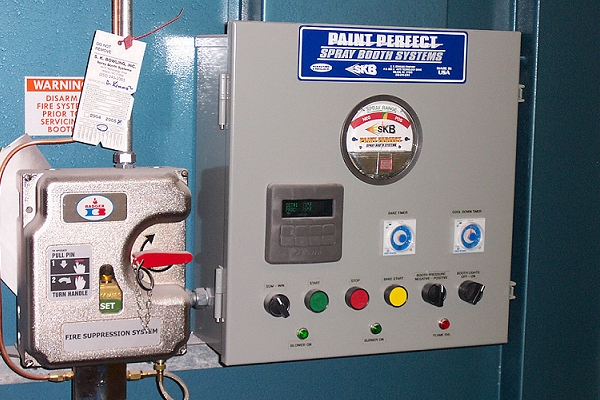

SK Bowling Down Draft Spray Booth Control Panel


NASCAR Team Application - Model DD 1424-9 SE
shown with Model MR 0824-9 Mixing Room

NASCAR Down Draft Paint Spray Booth Model DD 1424-9 SE

14’ wide by 24’ long by 9’ high inside

14’4” wide by 24’4” long by 11’ high outside Down Draft, Side Exhaust Pressure type Paint Spray Booth, Fabricated of 18 gauge galvanized steel.

Sixteen (16) 36 watt 48: Fluorescent 4 tube LDPI Front Access Light Fixtures complete with Color Rendering Lamps.

One(1) 34” diameter Tubeaxial Fan with aluminum non-sparking blades, with 5 hp motor, adjustable drive, belts, and service disconnect.

UL Approved Dry Chemical Fire Suppression System.


Specifications:
  • ETL listed

  • Custom designed to fit your location

  • Custom engineered for you
  • Factory installation

  • Permits Applied for and Secured
  • Fire suppression systems
  • Internal electrical power wiring of booth
  • Concrete work
  • 4-tube lights standard
  • Direct factory service
  • 24 month parts warranty
Options:
  • Drive Through
  • Direct Fire Heated Air Make Up
  • Two Speed Fans, VFD Drives, Touch Screen Display
  • Gas Piping & Regulators
  • Painted Inside and Out
  • Turn Key Installation
  • Attached Mixing Room
  • Roll Up Doors
  • Parts Rack

  • Wider, Longer, Higher, Smaller

More Down Draft Paint Spray Booths with Side Exhaust

Down Draft Paint Spray Booth with Side Exhaust

14’ wide by 26’ long by 10’ high inside

14’4” wide by 26’4” long by 11’ high outside Down Draft, Side Exhaust, Paint Spray Booth, Fabricated of 18 gauge galvanized steel.

Sixteen (16) 36 watt 48: Fluorescent 4 tube LDPI Front Access Light Fixtures complete with Color Rendering Lamps.

One(1) 34” diameter Tubeaxial Fan with aluminum non-sparking blades, with 5 hp motor, adjustable drive, belts, and service disconnect.

UL Approved Dry Chemical Fire Suppression System.


Specifications:
  • ETL listed

  • Custom designed to fit your location

  • Custom engineered for you
  • Factory installation

  • Permits Applied for and Secured
  • Fire suppression systems
  • Internal electrical power wiring of booth
  • 4-tube lights standard
  • Direct factory service
  • New smooth front
Options:
  • Drive Through
  • Direct Fire Heated Air Make Up
  • Two Speed Fan & Heater
  • Gas Piping & Regulators
  • Painted Inside and Out
  • Turn Key Installation
  • Attached Mixing Room
  • Roll Up Doors
  • Parts Rack

  • Wider, Longer, Higher, Smaller
