SK Bowling - Paint Perfect Spray Booth Systems


The Cloth Clean 18 - The innovative way to clean worker clothes in 18 seconds


Paint Perfect Booths

Down Draft Booth with Rear Exhaust

The SK Bowling Company has been building Paint Spray Booths since 1983.

We are proud to say that our product is one of the very few paint booths "MADE IN THE USA" that carries the ETL Listing Label. We are a world class, regional manufacturer of spray booths and custom ventilation systems. Our Titan Air Make Up Systems and LDPI Lighting Fixtures are the finest components available and also USA Manufactured. All of our replacement parts are available locally to insure minimal interruption in your operation.

Our Paint Booths and Mixing Rooms are ETL Listed. This means that our products are fabricated, constructed, and installed to meet or exceed all Federal, State, and Local Building Codes and NFPA 33 requirements. This has been verified by Intertek Testing Services, an accepted and approved 3rd party testing service.



Down Draft Booth with Rear Exhaust





.Down Draft Booth with Rear Exhaust

14’ wide by 24’ long by 9’ high inside

14’4” wide by 24’4” long by 9’2”’ high outside Down Draft, Rear Exhaust Paint Spray Booth, Fabricated of 18 gauge galvanized steel.

Ten (10) 36 watt 48: Fluorescent 4 tube LDPI Rear Access Light Fixtures complete with Color Rendering Lamps.

One(1) 24” diameter Tubeaxial Fan with aluminum non-sparking blades, with 3 hp motor, adjustable drive, belts, and service disconnect.

UL Approved Dry Chemical Fire Suppression System.


Specifications:
  • ETL listed

  • Custom designed to fit your location

  • Custom engineered for you
  • Factory installation

  • Permits Applied for and Secured
  • Fire suppression systems
  • Internal electrical power wiring of booth
  • 4-tube lights standard (4 corner lights optional)
  • Direct factory service
  • 24 month parts warranty
Options:
  • LDPI Rear Access Light Fixtures
  • Direct Fire Heated Air Make Up
  • Two Speed Fans, VFD Drives, Touch Screen Display
  • Gas Piping & Regulators



  • Painted Inside and Out
  • Turn Key Installation
  • Attached Mixing Room
  • Roll Up Doors
  • Parts Rack
  • Wider, Longer, Higher, Smaller

  • Drive Through Configuration available.


Click on photos for full-size view:

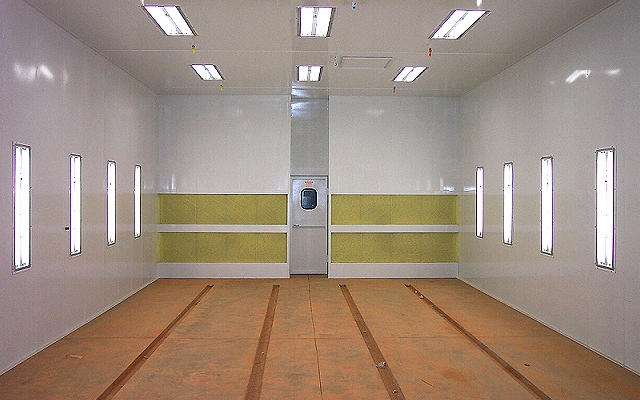

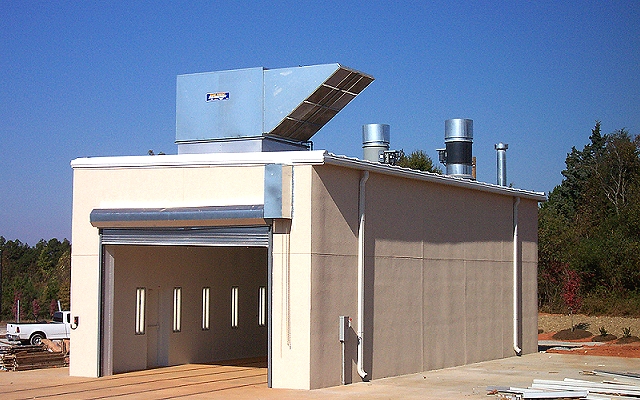

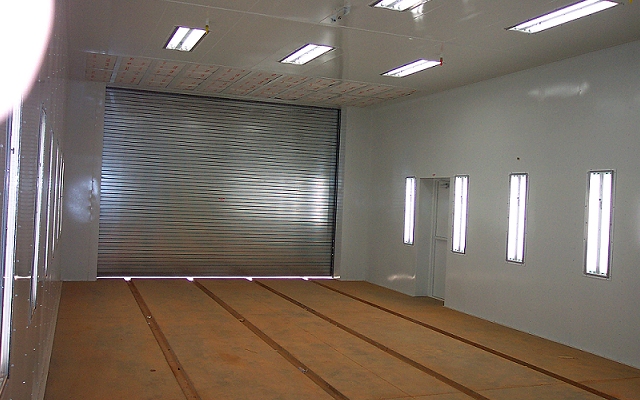

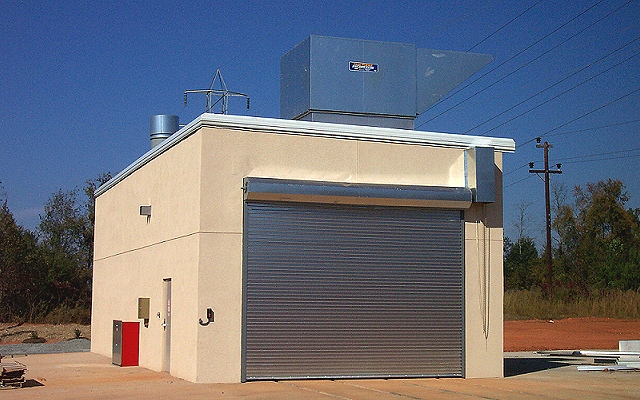

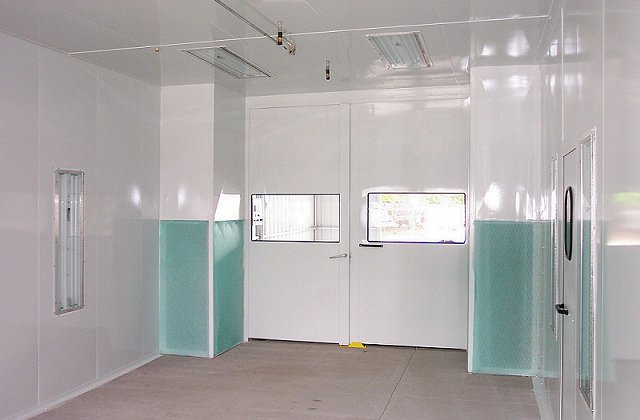

Down Draft Booth with Rear Exhaust Down Draft Booth with Rear Exhaust

Down Draft Booth with Rear Exhaust

Down Draft Booth with Rear Exhaust

New Installation of DD 1426-9 RE Rear Exhaust Booth:
(Click on photos for full-size view)

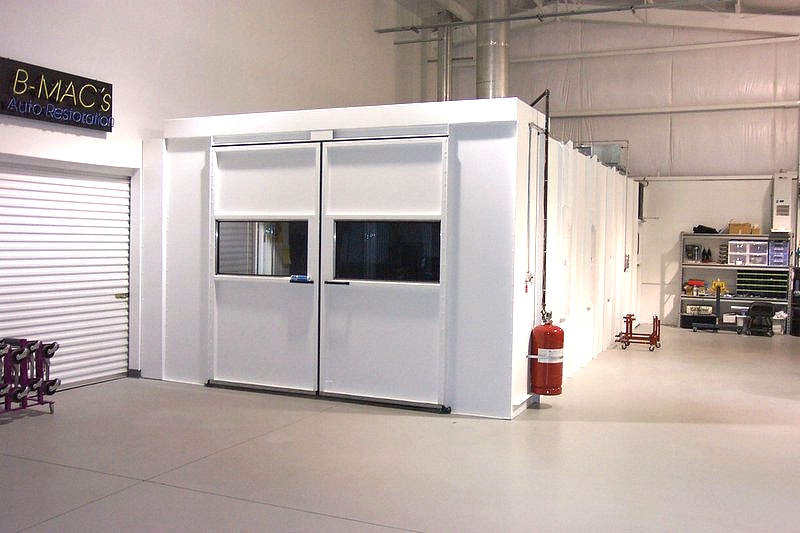

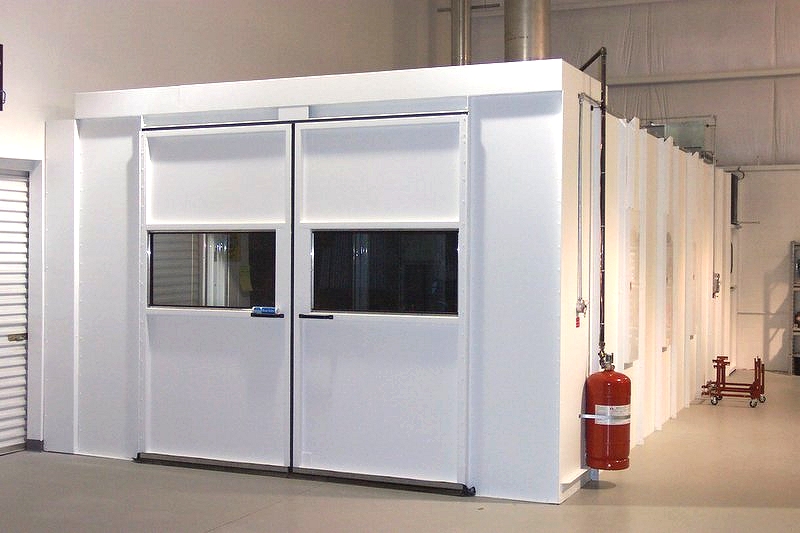

DD 1426-9 RE Rear Exhaust Booth DD 1426-9 RE Rear Exhaust Booth

DD 1426-9 RE Rear Exhaust Booth

Capital City

DD 1426-9 RE Rear Exhaust Booth

Ski's Auto Body
