Internal
Dimensions:
27'(L) x 14’(W) x 9’(H)
External Dimensions:
27’5”(L) x
14’5”(W) x
11’(H)

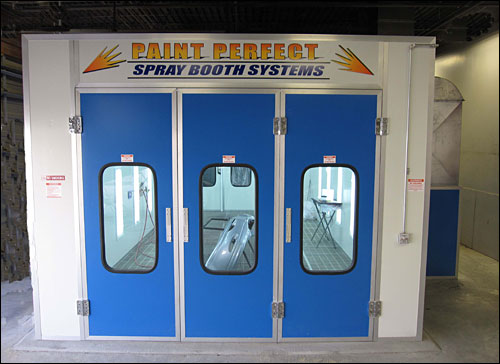

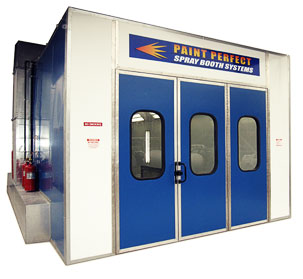

Front Door:
Tri-Fold Door 8’6"(H) x
10’(W)
Personnel Door:
6’6”(H) x 2’6”(W)
Optional Drive Through: (DT)
Tri-fold door 8'6"(H) X 10'(W) at rear of booth
Wall Panels:
Double Walled,
non-corroding,
Galvanized Steel, 2 ½”
Wall Insulation, Tongue
and Groove

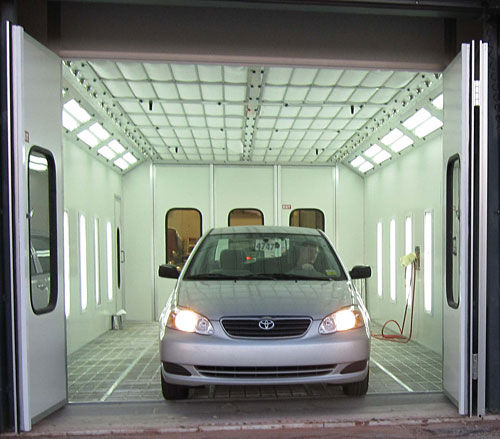

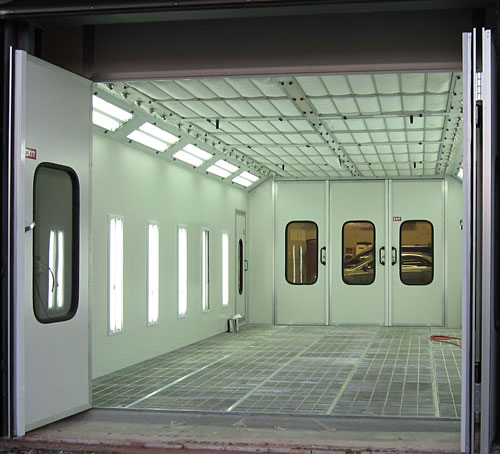

Booth Lighting:
14 Total Fixtures,
4-tube, 32 Watts each

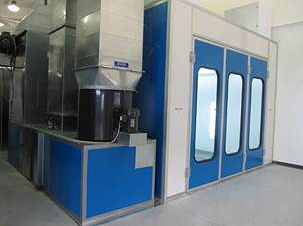

Air Make Up:
Direct Fired, 1,000,000
btu NG/LP Gas. High
Efficiency, Natural Gas
or LP Heater with Bake
Cycle, re-circulating
Exhaust:
Reverse incline blower
18,280 cfm or optional,
34” Tube axial fan
Control Panel:
Digital Temperature
Display and Controller
Drives:
Variable Frequency
Drives for Booth
Pressure Control
Surfaces:
4-Step, Baked Polyester
Finish. (Most durable
and corrosion resistant
finish available)
Listing: ETL
Listed Booth, not just
components
Water Borne System:
Optional: (48)
High Velocity,
Directional Air Nozzles
for Accelerated
Water Based Paint Drying
Configurations:
-
Basement: 11 ¾”
Raised Metal-Base
with Full Ramps (4)
-
Center Concrete
H-Style Pit
-
Full
Pit: Pit Option
Available for
Non-Ramp Entry
(shown)
-
Raised Floor: No Pit
with Ramp Entry
-
Side
Exhaust Plenums, No
Pit
Interlocking assembly. All wall, corner panels, lights and access doors are pre-finished.
Fully automatic, including purge and cool-down cycle. Air intake fan draws 10% fresh air into cabin to reduce solvent concentration during bake cycle. Lights turn off automatically during bake mode.
Dry Chemical Fire Suppression System |
