	DOWN DRAFT SPRAY BOOTHS WITH CONCRETE PIT	MADE IN THE USA

Concrete Pit

Rear Exhaust

Side Exhaust

Raised Floor

The S K Bowling Company has been building Paint Spray Booths since 1983.

We are proud to say that our product is one of the very few paint booths "MADE IN THE USA" that carries the ETL Listing Label. We are a world class, regional manufacturer of spray booths and custom ventilation systems. Our Titan Air Make Up Systems and LDPI Lighting Fixtures are the finest components available and also USA Manufactured. All of our replacement parts are available locally to insure minimal interruption in your operation.

Our Paint Booths and Mixing Rooms are ETL Listed. This means that our products are fabricated, constructed, and installed to meet or exceed all Federal, State, and Local Building Codes and NFPA 33 requirements. This has been verified by Intertek Testing Services, an accepted and approved 3rd party testing service.

Made in the USA

ETL listed
Custom designed to fit your location
Custom engineered for you
Factory installation
Permits Applied for and Secured
Fire suppression systems
Internal electrical power wiring of booth
Concrete work
4-tube lights standard
Direct factory service
24 month parts warranty

Options:

Drive Through
Direct Fire Heated Air Make Up
Two Speed Fans, VFD Drives, Touch Screen Display
Gas Piping & Regulators
Painted Inside and Out
Concrete Pit Work
Turn Key Installation
Attached Mixing Room
Roll Up Doors
Parts Rack
Wider, Longer, Higher, Smaller

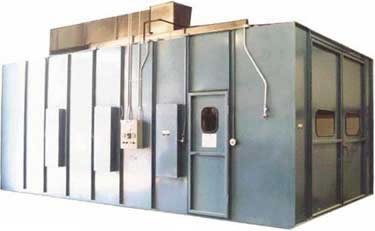

DD1426-10 - DOWN DRAFT SPRAY BOOTHS
14’ wide by 26’ long by 10’ high inside
14’4” wide by 26’4” long by 12’ high outside Down Draft, Pressure type Paint Spray Booth, Fabricated of 18 gauge galvanized steel.

Sixteen (16) 36 watt 48: Fluorescent 4 tube LDPI Front Access Light Fixtures complete with Color Rendering Lamps.

One(1) 34” diameter Tubeaxial Fan with aluminum non-sparking blades, with 5 hp motor, adjustable drive, belts, and service disconnect.

New Smooth Front - Down Draft Paint Spray Booths UL Approved Dry Chemical Fire Suppression System

Custom designed control panel - Down Draft Paint Spray Booths

Custom designed control panel with digital temperature display, bake timers, cool down timers, booth lights, mixing room lights operating lights, shut down, booth pressure gauge and damper control.
